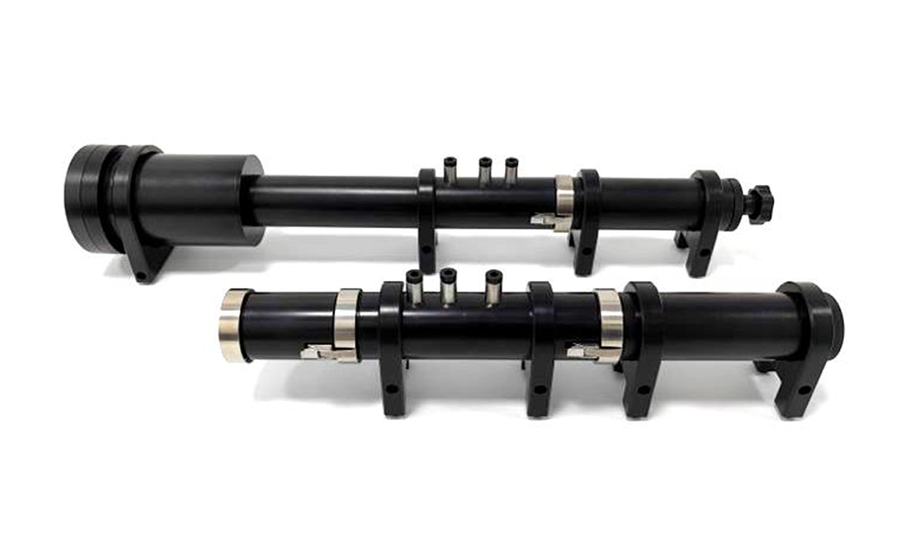

XSW4301 / XSW4331 Impedance Tube
XSW43X1 series impedance tubes are a new type of impedance tube product designed by BSWA based on the transfer-function method. The impedance tubes are compact in design, lightweight, and easy to assemble, making material replacement more convenient and rapid. As a supplement to the SW42X1 and SW46X1 series impedance tubes, they are suitable for users who are concerned about the mid-frequency performance of the materials. One set of tubes can complete the required frequency band testing. If a wider frequency range is needed, please choose the impedance tubes of the SW42X1 and SW46X1 series.
The XSW43X1 series impedance tubes are designed based on the two-microphone transfer function method. Paired with the MCR impedance tube software, the measurable material parameters include: sound absorption coefficient, reflection coefficient, acoustic impedance rate, acoustic admittance rate, transmission loss, propagation wave number, etc.
Features:
● Acoustical properties of material measurements based on the transfer-function method according to not only absorption coefficient standard of GB/T 18696.2, GB/J 88, ISO 10534-2 and ASTM E1050-12, but also transmission loss standard of ASTM E2611–17
● Separable sample holder tube is convenient for placement of materials to be test
● Faster and more accurate compared to the standing wave ratio method
● Combined measurements with different microphone spacings can cover a wider frequency range
● The inner diameter is 50mm, which lies between the commonly used 100mm and 29mm pipes in the market. It meets the requirements for inter-pipe sealing and snap connection structure in the conventional frequency band. The structure has been improved, significantly enhancing the sealing and sound insulation performance, and making the pipe installation more convenient and rapid.
Applications:
● Quantitative measurement of acoustic properties of materials
● Measure the acoustic coefficients of materials which required for simulation software
| Recommended Attachments | |
|---|---|
| XSW4301 |
PA50 Power Amplifier x 1 MC3322 Data Acquisition x 1 MPA416 Microphone x 2 BNC-SMB Coaxial Cable x 2 BNC-BNC Coaxial Cable x 1 |
| XSW4331 |
PA50 Power Amplifier x 1 MC3242A Data Acquisition x 1 MPA416 Microphone x 4 BNC-SMB Coaxial Cable x 4 BNC-BNC Coaxial Cable x 1 |
Note: not standard configuration. The specific model may vary depending on the application.
Impedance Tube/Transmission Loss Tube
|
Type |
XSW4301 |
XSW4331 |
||
|
Standard |
GB/T 18696.2、GB/J 88、ISO 10534-2、ASTM E1050 |
GB/T 18696.2、GB/J 88、ISO 10534-2、ASTM E1050、GB/Z 27764、ASTM E2611 |
||
|
Frequency Range |
100 Hz ~ 4 kHz |
|||
|
Diameter |
50 mm |
|||
|
Microphone Spacing |
30 mm / 70 mm |
|||
|
Matching Microphone |
1/4-inch microphone x 2 |
1/4-inch microphone x 4 |
||
|
Length of Tube 1 |
757 mm |
1087 mm |
||
|
Zero Absorption |
100 Hz~4 kHz: <5 %(calculated in 1/3-octave band) |
|||
|
Operating Environment |
Temperature: -10 °C~50 °C, Humidity: 5 %RH~95 %RH (non-condensing) |
|||
|
Vocalization Unit |
4 Ω speaker, rated power 10 W, peak power 30 W, banana plug |
|||
Download information:
XSW4301 Impedance Tube Kit / XSW4331 Transmission Loss Tube Kit Brief
