VSS15 Planar Volume Source
VSS15 is a special plane volume source developed by BSWA TECH. It can be used in noise transfer function (P/F) and acoustics transfer function (P/Q) reciprocity test, TPA analysis, acoustic excitation test such as sound insulation, sound absorption and SEA test.
The VSS15 features twelve loudspeaker units, with an effective frequency range covering 100 Hz to 5 kHz. It can achieve an output sound power level of up to 123 dB. An integrated reference microphone is used for feedback on the output excitation sound power. The product is equipped with vibration-damping feet at the bottom and assembly holes on the side, allowing multiple planar volume sources to be combined for use.
Product Features
● Frequency response: 100 Hz ~ 8,000 Hz
● Plane volume source with twelve loudspeakers
● Flat design with the height of 115mm (4.5")
● Up to 123 dB maximum sound power level
● Up to 115 dB sound pressure level at 1 meter
● Modular design
● Built-in reference microphone
Application
● Sound transmission loss testing for the floor structure
● Air-borne transfer functions for the road and engine noise
● Floor trims and carpet design validation
● Floor structure noise leakage analysis
| Specification | |
|---|---|
| Dimension (mm) | W600 x H115 x D450 |
| Weight | 9kg (without package), 19.6kg (with package) |
| Package Size (mm) | W848 x H247 x D578 |
| Nominal Impedance | 6Ω |
| Rated Power | 250W |
| Peak Power | 500W |
| Frequency Response | 100Hz~8000Hz (According to IEC 60268-5:2007) |

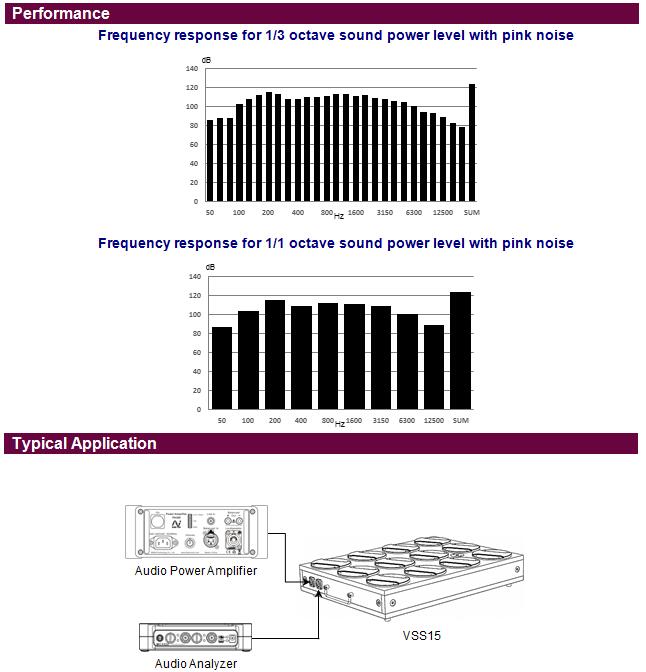

| Maximum Sound Power Level | 123dB (Pink); Lw≥100dB @100Hz~6300Hz (1/3 Octave) |
| Input Connector | SpeakON Audio Connector |
| Loudspeaker Units | Rubidium magnet loudspeaker, 4 inch, 8Ω, 30W |
| Reference Microphone | Pressure-field microphone MPA253, powered by ICCP supply, sensitivity 50mV/Pa, BNC output connector |
