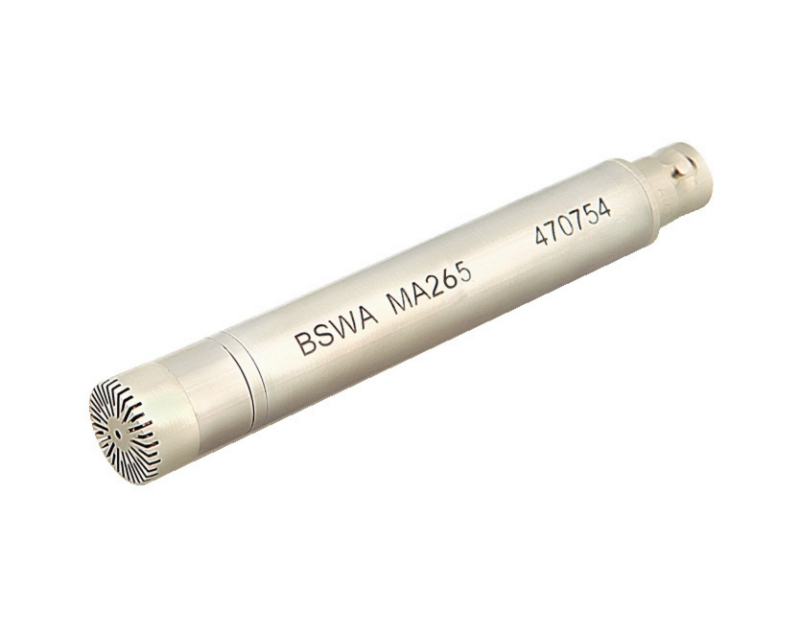

MPA265 1/2-inch free-field Microphone Set（MP215、MA231）
BSWA ICCP microphones, MPA231/215, utilize the outstanding performance of BSWA's MA231 ICCP preamplifier coupled with the high quality line of 1/2" prepolarized microphones. Using ICCP microphones have many advantages over traditional 200V polarized microphones.
MPA261/265 is ICCP TEDS microphone with a combination of BSWA 1/2’’ microphone and TEDS preamplifier MA211.
| Specification | |
|---|---|
| Diameter | 1/2 |
| Microphone Capsule | MP215 |
| Preamplifier | MA231 ( TEDS optional ) |
| Optimized Frequency Response | 20 Hz ~ 12.5 kHz |
|
Open-circuit Sensitivity (mV/Pa) (±2dB) |
40 mV/Pa |
|
Dynamic Range (dBA) |
23 ~ 135 dB |
|
Inherent Noise (dBA) |
23 dB (A) |
|
Operating Temperature (°C) |
-30 ~ 80 |
|
Operating Humidity (RH) |
0 ~ 95% |
|
Pressure Coeff cient (250 Hz) (dB/kPa) |
-0.01 |
|
Output Connector |
BNC |
Download information:
MPA265
